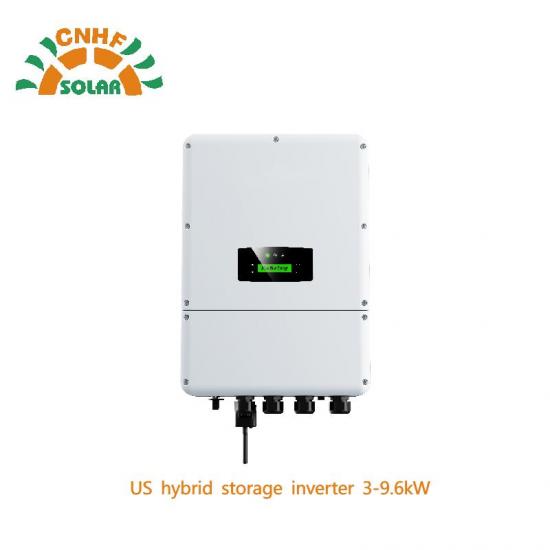

MPPT Solar Charge Inverter 8kW 8000W Hybrid Solar Inverter Split Phase For House Use, Full certification
Item NO.:
CN8KSLPayment:
30% deposit in advance, 70% balance paid before shippmentProduct Origin:
ChinaColor:
CustomizedShipping Port:
Shanghai,Ningbo,ShenzhenLead Time：
15-25 working daysProduct Introduction
There are two 120v hotlines, one neutral and one ground.
The voltage between L1 and L2 is 240 Vac, between either one hotline and the neutral is 120V. The 240V is made by the two hotlines cycling 180 degrees out of phase with each other.
This power system can drive either 120V or 240V equipments. The 120V is perfect for home and small scale commercial or mobile applications.
Product Parameters
| PV Input Data | CN5KSL | CN6KSL | CN7KSL | CN8KSL | CN9.6KSL |
| Max.Input Power (W) | 7.5 | 9.0 | 10.5 | 12.0 | 15.0 |
| Max.PV Voltage (V) | 600 | ||||
| MPPT Range (V) | 80 - 550 | ||||
| MPPT Full Power Voltage Range (V) | 500-850 | 500-850 | 500-850 | 500-850 | |
| No.of MPP Tracker | 2/2,3/3 | ||||
| Battery | |||||
| Max.Charge/Discharge Power (kW) | 9.0/9.0 | 10.5/10.3 | 11.4/10.3 | 11.5/10.3 | 11.5/10.3 |
| Max.Charge/Discharge Current (A) | 50 | ||||
| Battery Normal Voltage (V) | 230 | ||||
| Battery Voltage Range (V) | 80-485 | ||||
| Battery Type | Li-ion / Lead-acid | ||||
| AC Grid | |||||
| Norninal Grid Voltage (A) | 211 to 264 @ 240 / 183 to 229 @ 208 | ||||
| Norninal Grid Frequency (Hz) | 60Hz | ||||
| Dimensions (H*W*D) | 560*400*229 mm | ||||
| Weight | 25kgs | ||||
| Mounting | Wall Bracket | ||||
| Certification | IEEE1547,CSA,C22,EN50549,VDE4105,VDE0126,RD1699,ABNT NBR16149 & 16150,AS4777.2,NB/T32004,G98/G99,IEC61727 | ||||
Product Projects
Warmly welcome to contact us if any interests.
